Gearbox Oil Change

After refurbishing the Gear Lever and Linkage I thought i’d change the gearbox oil as I doubt it has been changed since 1991.

Just like the other jobs i’ve completed I simply crawled under the van to do this, it’s a tight squeeze but manageable.

Shopping list:

The Drain and Filler plugs are not essential but I wanted to replace with new as the current ones looked corroded and I could damage them during removal.

Before you start, go for a nice drive somewhere to warm up the gearbox as the oil will flow better and make draining easier.

First thing is to remove the Filler Plug, this is the one on the side of the gearbox next to the selector shaft.

Filler Plug

I used the Gearbox Key with a 14mm spanner to remove the Filler Plug. There is enough room to whack the spanner with a rubber hammer to get it out, mine was quite stiff so I gave it a good squirt of Plus Gas Releasing Fluid first.

20160410_112246421_iOS
Removing the Filler Plug with 17mm Key and 14mm spanner

It important to remove the Filler Plug before the Drain Plug. The Filler Plug may have seized and be impossible to remove, if this is the case you will have no way of refilling the oil if you have drained the gearbox. Follow this handy flowchart:

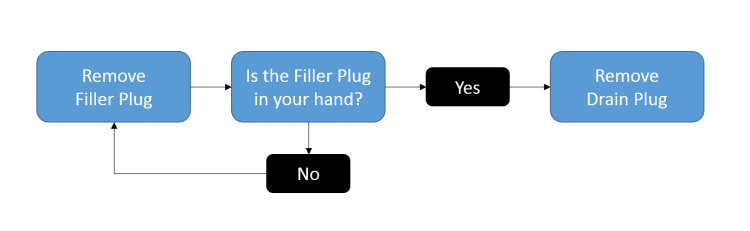

Gearbox Oil Flowchart
Gearbox Oil Plug Flowchart



Drain Plug

The Drain Plug is located underneath the gearbox to the rear.

Mine had quite a bit of corrosion so I cleaned out the inside to ensure the Gearbox Key went all the way in. Position the drain pan underneath and unscrew.

A word of warning: Gearbox oil STINKS. The drain pan I used could not deal with the initial flow of oil so spilled over the side onto the floor and onto me.

The Drain Plug is magnetic to collect any bits of metal floating around in the gearbox and protect your gears in the process. Here is Sir Adventure’s drain plug showing 25 years of gear wear:

20160410_114929585_iOS
Magnetic Drain Plug showing collected gearbox wear

Once the oil has finished draining you can replace your cleaned Drain Plug or like me, fit a new one. The plug does not go all the way in, there is some thread still visible when tightened.

Refilling

I used a Draper Oil Funnel with Tube and it was the perfect length to pour the new oil in from the engine bay. The pack also includes a handy screw on funnel for the 5L bottle.

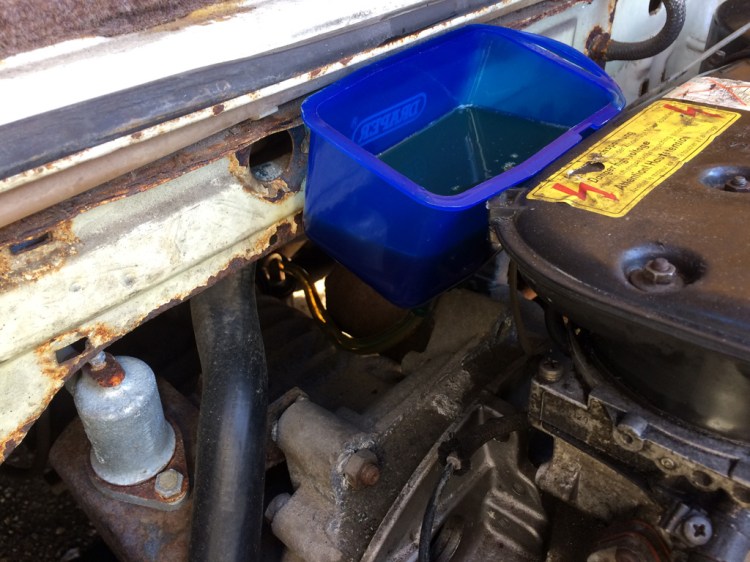

20160410_124922823_iOS
Funnel in the engine bay positioned behind the carburetor

The gearbox takes 3.5L of oil, I poured 1.5L into a separate container then slowly poured the rest into the funnel. Once oil starts to pour out of the filler hole (if the van is level) the gearbox is full. Remove the tube and refit the Filler Plug. Job done!

7 Replies to “Gearbox Oil Change”

  1. Just changed the gearbox oil for 1989 1.6TB T25 5 speed hi-top and it took 4.8 l. We took the gear box out completely and had it all levelled up. The manual states 3.5l but that wasn’t enough so topped it up until it just came out of the level plug.

    Like

  2. The gearbox should fully drain even when on the van. I noticed another commentor used 5l but on a different engine size. We removed the gearbox to change the clutch because the gears got stuck intermittently, however, we then discovered the flywheel spigot bearing had disintegrated and that is probably the problem. So changing the clutch anyway today as it has wear, replacing the spigot and also replacing various gear linkage gators. That should all help!

    Like
